TWO OPTIONS FOR IMPLEMENTATION IN YOUR COMPANY:

(Technical Datasheet can be found below)

Option
1

Buy springs from us

Buy springs from the Shop

Option
2

License

Contact us for the License options.

Option 1

Separate springs

Presentation below explains how springs are dimensioned for a fan. You can buy springs from the Shop.

Spring selection explained for a fan equipped with 3HS20 InfiniSpring-springs.

Go to shop

Option 1 and 2

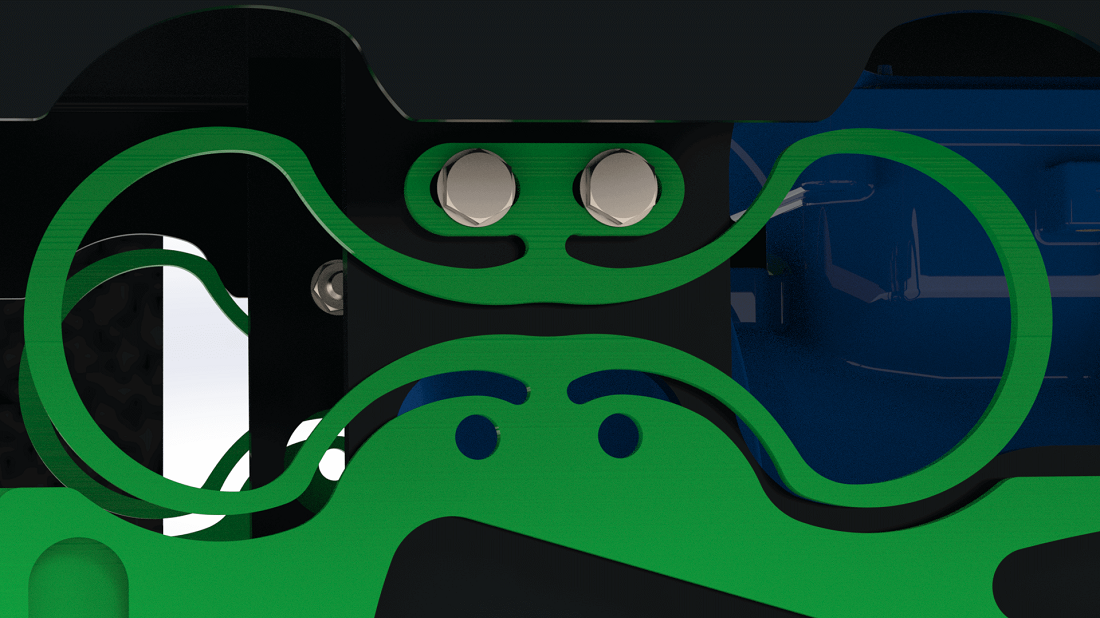

Integrated springs

Video below explains how spring integration is utilized in CAD. Through the License Agreement we offer you complete data for spring integration and manufacturing.

Please Contact us separately for the Licenses.

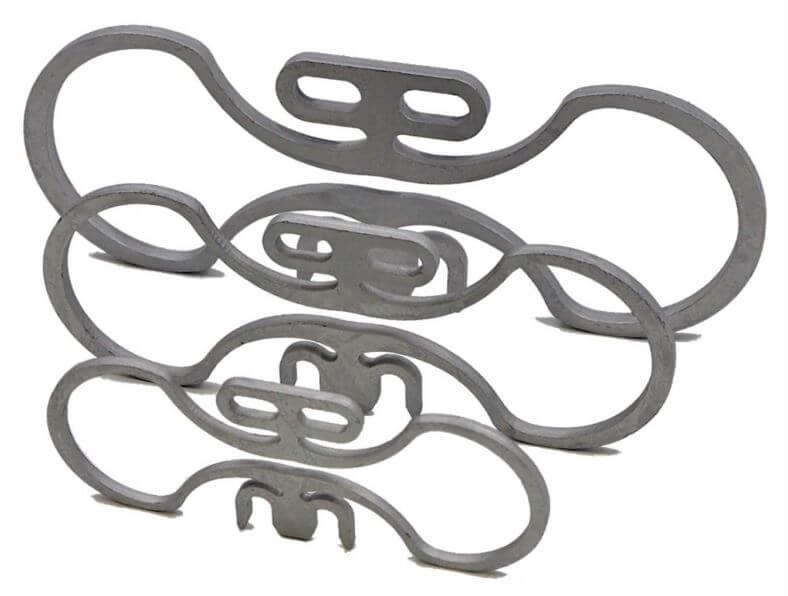

Technical Datasheet

  • Material sheet metal yield strength 650 MPa (or higher)
  • Load range from 15 kg up to 300 kg for a single spring
  • Material thickness from 3 mm up to 12 mm
  • Smaller and bigger size springs also available on request
  • For your special needs please contact us anytime

Open Separate Spring Datasheet

Open Spring Mount Datasheet



















Link to spring selection:

In collaboration:
